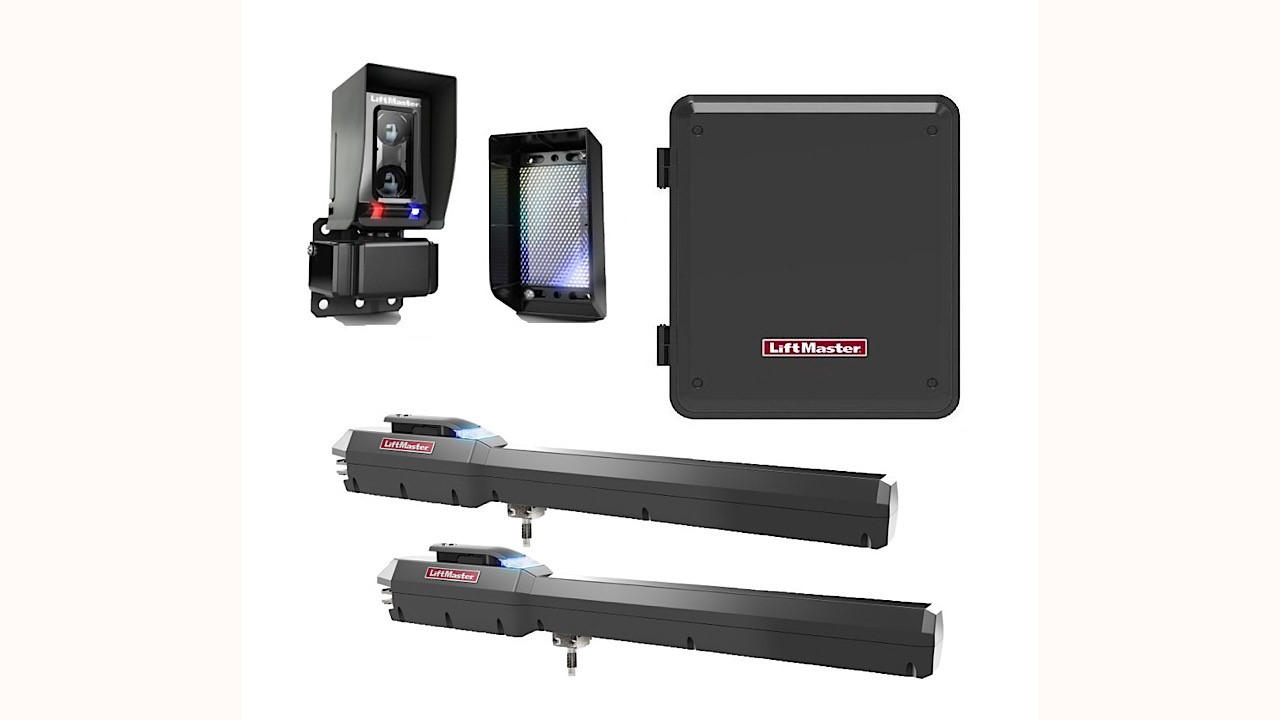

LA500PKGUL Residential/Light-Commercial Operator
Looking for LA500PKGU Installation Manual? Click Here
Looking for LA500PKGU Sell Sheet? Click Here
Unrivaled Performance, Safety and Accessibility
Built to deliver unsurpassed safety and performance, our 2016 UL Listed
Gate Operators and Monitored Safety Entrapment Devices provide peace of mind for every gate application.
Best In Class Features!
*Commercial-Duty Cast Aluminum Housing with Heavy-Duty DC Motor powerful enough to perform in the most demanding applications.
*Soft Start/Stop and Mid-Travel Reversal extends operator and hardware life in high-cycle and heavy-gate applications.
*Keyed Manual Disconnect when unlocked, allows gate to be operated manually.
*Inherent Reversing Sensor detects obstructions or increased loads. Reverses gate when closing or stops/reverses the gate when opening.
*Fire Department Compliance allows gate to auto open upon loss of AC power or battery depletion.
*Molecularly Bonded Coating on drive system never needs lubrication.
*Quick Close/Anti-Tailgate quickly secures property, preventing unauthorized access.
*Surge Suppression provides industrial surge and lightning protection against strikes up to 50 feet away.
LED Diagnostic Display simplifies installation and troubleshooting.
Solar-ready ultra reliable system; simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance.
Wireless dual gate communication; Eliminates expensive conduit costs and unsightly driveway scars.
Programmable auxiliary relays;easily add additional features, such as warning lights/alarms.
Bi-part delay monitors and adjusts speed and position of each wing to ensure primary gate closes last.
Syncronized close; Simultaneously closes gates.
Pre-motion warning alarm activates on-board alarm three seconds prior to gate motion.
Anti-tailgate prevents unauthorized access. Gate will pause when closing as vehicle pulls onto interrupt loop or breaks photo beam. Once vehicle backs up, gate will continue to close.
HOMELINK® COMPATIBLE Version 4 and higher.
SECURITY+ 2.0® ON-BOARD RADIO RECEIVER Up to 50 remote controls (unlimited with 811LM/813LM).
SPECIFICATIONS
POWER
Full-time AC-run operation 120V/230V Single Phase.
ACCESSORY POWER
24VDC 500mA output.
Switched and unswitched power.
MONITORED SAFETY INPUTS
3 Main Board, 3 Expansion Board.
TEMPERATURE SPECIFICATIONS
-4°F (-20°C) to 140°F (60°C).
UL USAGE CLASSIFICATION
I, II, III, and IV.
GATE TRAVEL SPEED
90-degree opening in 15-17 seconds.
CONSTRUCTION
P3 MOTOR®
24VDC continuous-duty motor.
OPERATOR DUTY RATING
Continuous duty, 300 cycles per day.
CHASSIS
Commercial-duty aluminum die-cast housing.
WORM GEAR REDUCTION
Precision-machined all-metal gear in contained
lubrication housing.
OPERATOR WEIGHT
Actuator arm 35 lbs.
Standard control box 13 lbs.
RECOMMENDED CAPACITIES
Rated for gates up to 18 ft. in length or weighing up to 1,600 lbs.
2 Year Manufacturer's Warranty!
